| TYPES |

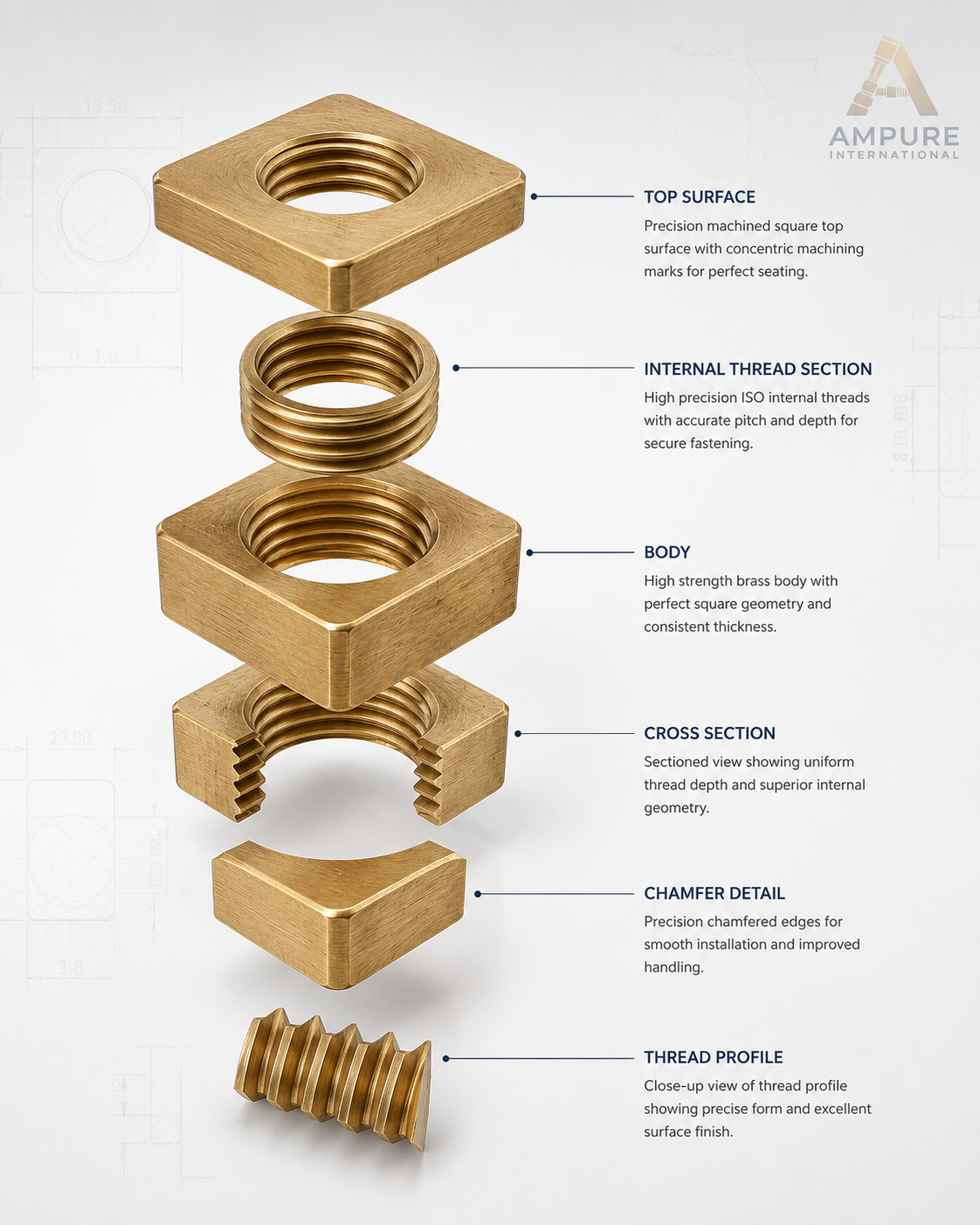

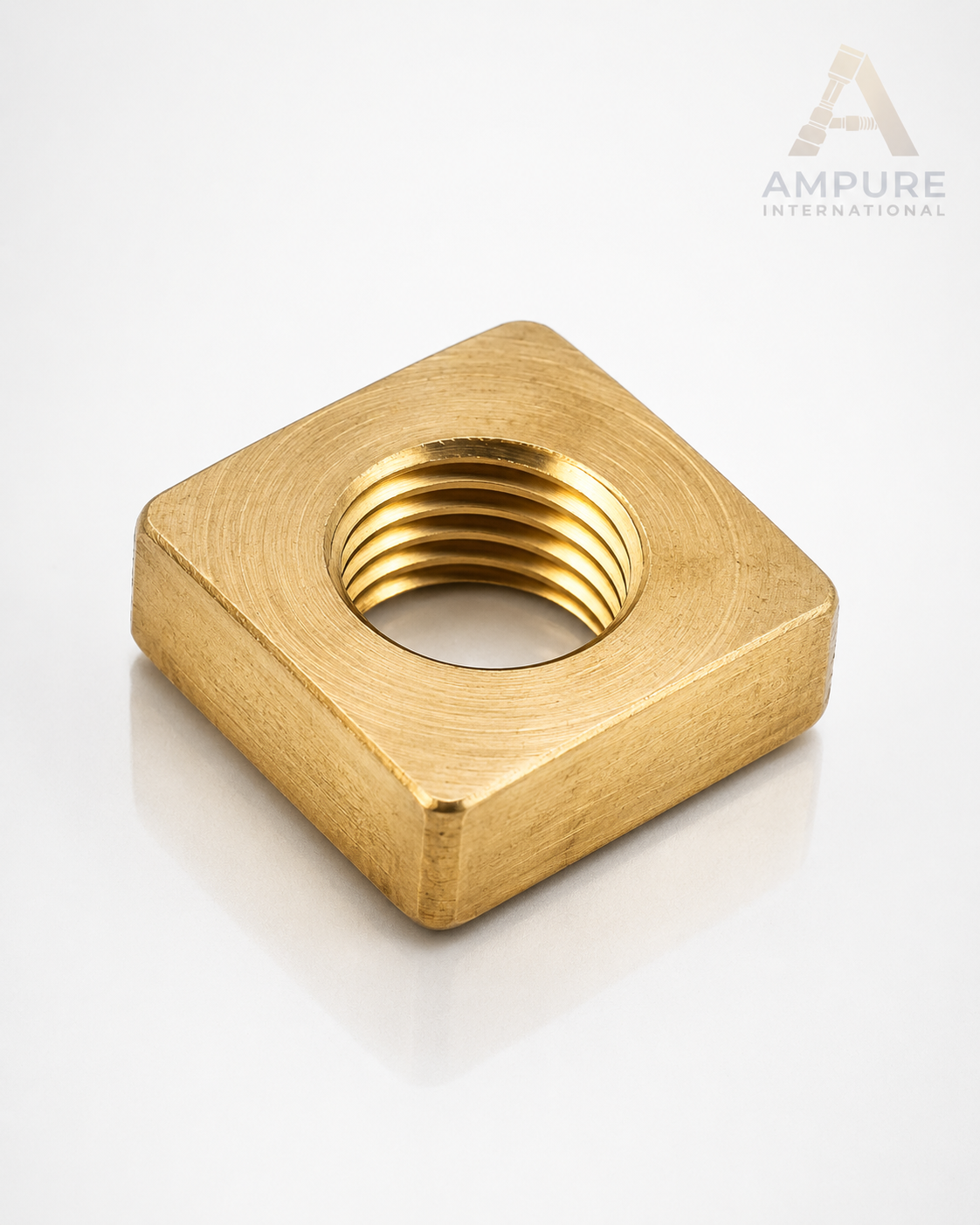

SQUARE NUT |
| MATERIAL GRADE |
|
| Brass Alloy |
CuZn39Pb3 / CuZn39Pb2 / CuZn38Pb1.5 / CuZn37Pb2 / CuZn40Pb2 / MS 58 / BS2874 / IS 319 (Type I & II) |
| UNS (ASTM) |
C35300 / C35330 DZR / C36000 (CDA 360) / C36500 / C37000 / C37100 / C37700 / C37710 / C38500 |
| BS |
CZ121 / CZ122 / CZ124 / CZ128 / CZ 131 / CZ132 |
| EN |
CW602N / CW603N / CW606N / CW608N / CW612N / CW614N / CW617N |
| JIS |
C3601 / C3602 / C3603 / C3604 / C3605 / C3712 / C3771 |
|
Any special brass material compositions as per customer’s requirements. |
| TOLERANCE |
With tight tolerance ±0.005 specific tolerances can be discussed with the customer, given the part material, size, and geometry. |
| APPLICATION |
Panel, Junction box,Laptop, Electrical, Automobile and Instrumentation. |
| DIMENSIONS |

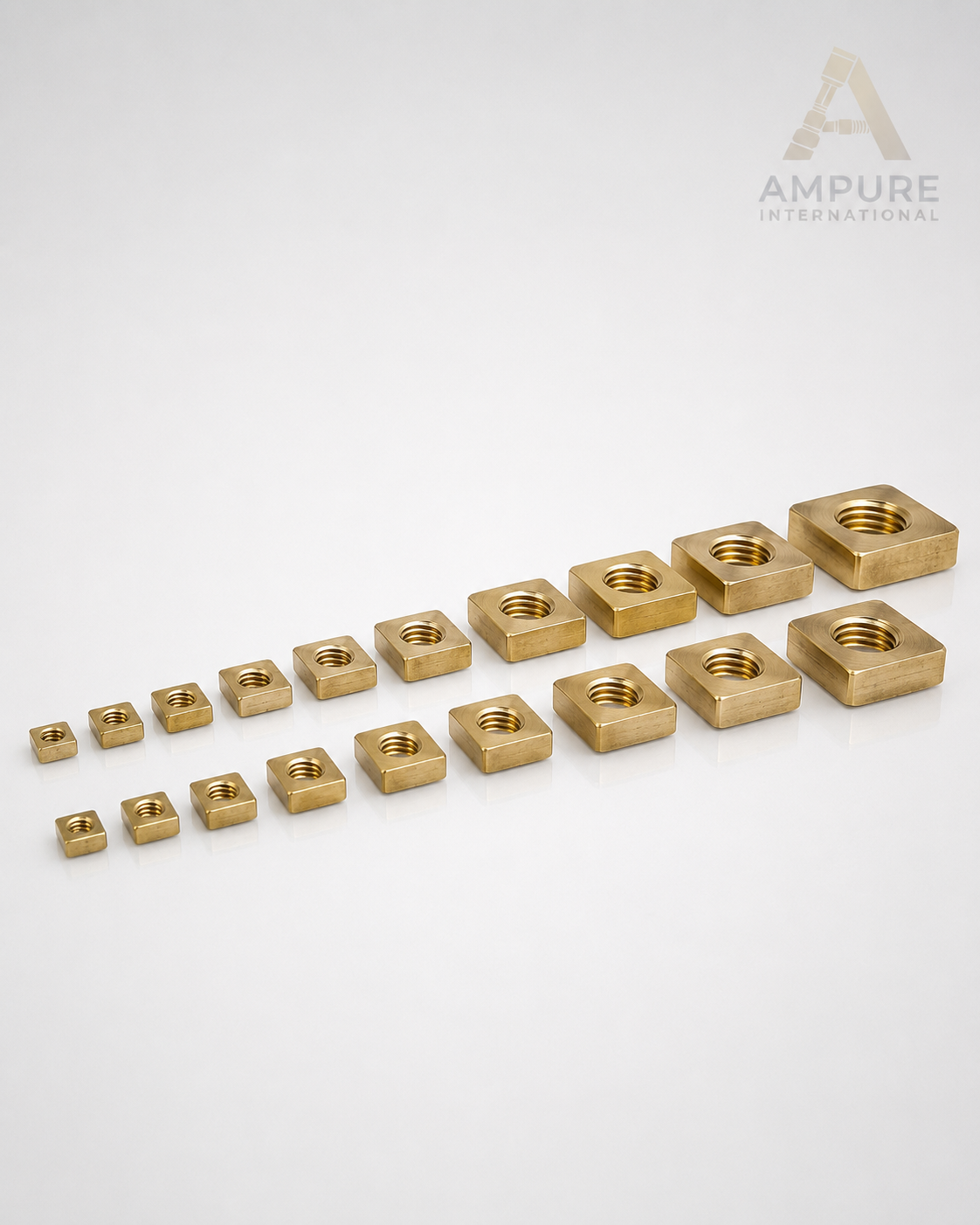

Sizes available from M2 to M30 and up to M36, and as per Custom Designs and requirements. |
| THREADS |
ISO Metric MM / BA / BSW / BSP / BSPT / BSF / BSB / UNC / UNF / UNEF / NPT / NPS / Specified Threads Any threads as per customer requirement . |
| FINISH |
Natural/ Nickel Plated / Electro-Tin Plated / Silver Plated / Copper Plated / Zinc Plated / Chrome Plated / Specified Surface Finish [Any other finish as per customer requirement] |
|
Plating Thickness as per customer requirement |
| STANDARDS |
ISO/ ASTM |
| QUALITY ASSURANCE |
100% visual inspection |
|
Thread gauge inspection (GO/NO-GO) |
|
Leak and pressure testing |
|
Dimensional inspection using calibrated instruments |
|
Material test certificates (on request) |
|
Compliance with ISO 9001 quality systems |
| PACKAGING |
Bulk packing in polybags + export cartons |
|
Box packing with labeling |
|
Blister packing (retail) |
|
Custom packaging as per client requirements |
|
Anti-corrosion packing for export |
| Manufacturing Process |
Raw material cutting |
|
CNC machining / automatic turning |
|
Drilling and threading |
|
Deburring and cleaning |
|
Surface finishing / plating |
|
Inspection and testing |
| Lead Time |
Standard items: 2–4 weeks |
|
Custom parts: 4–6 weeks |
|
PROTOTYPE: 1 WEEK |
|
BULK ORDER AS PER SCHEDULE |
|
Depends on quantity and finishing requirements |
